首頁 > 產品分類 > 接近傳感器 > 電感式接近傳感器 >

電感式接近傳感器

電感式直流3線傳感器

 涵括? 6.5，M5，M8，M12，M18，M30的圓柱形和S10，S18,S40方形

 開關頻率達到5000Hz

 抗干擾強

 多種電纜和插頭滿足個性化需求

行業應用：汽車行業 / 包裝行業 / 智能倉儲 / 冶金工業 / 石油化工 / 印刷行業 / 機床行業 / 紡織行業 / 食品行業 / 工廠自動化

基本參數

  • M8
  • M12
  • S10
  • S18
  • M18
  • M30
  • M5
  • Φ6.5
型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POV-M0802N2-DP3 M8 2mm 3000Hz Flush 齊平 NPN.NC 45mm Cable,2m,3-wire
POV-M0802P1-DP3 M8 2mm 3000Hz Flush 齊平 PNP.NO 45mm Cable,2m,3-wire
POV-M0802P2-DP3 M8 2mm 3000Hz Flush 齊平 PNP.NC 45mm Cable,2m,3-wire
POV-M0803N1-DP3 M8 3mm 1000Hz Flush 齊平 NPN.NO 45mm Cable,2m,3-wire
POV-M0803N2-DP3 M8 3mm 1000Hz Flush 齊平 NPN.NC 45mm Cable,2m,3-wire
POV-M0803P1-DP3 M8 3mm 1000Hz Flush 齊平 PNP.NO 45mm Cable,2m,3-wire
POV-M0803P2-DP3 M8 3mm 1000Hz Flush 齊平 PNP.NC 45mm Cable,2m,3-wire
PHV-M0804N1-DP3 M8 4mm 1000Hz Non-flush 非齊平 NPN.NO 45mm Cable,2m,3-wire
PHV-M0804N2-DP3 M8 4mm 1000Hz Non-flush 非齊平 NPN.NC 45mm Cable,2m,3-wire
PHV-M0804P1-DP3 M8 4mm 1000Hz Non-flush 非齊平 PNP.NO 45mm Cable,2m,3-wire
PHV-M0804P2-DP3 M8 4mm 1000Hz Non-flush 非齊平 PNP.NC 45mm Cable,2m,3-wire
PHV-M0806N1-DP3 M8 6mm 500Hz Non-flush 非齊平 NPN.NO 45mm Cable,2m,3-wire
PHV-M0806N2-DP3 M8 6mm 500Hz Non-flush 非齊平 NPN.NC 45mm Cable,2m,3-wire
PHV-M0806P1-DP3 M8 6mm 500Hz Non-flush 非齊平 PNP.NO 45mm Cable,2m,3-wire
PHV-M0806P2-DP3 M8 6mm 500Hz Non-flush 非齊平 PNP.NC 45mm Cable,2m,3-wire
POV-M0802N1-DP330 M8 2mm 3000Hz Flush 齊平 NPN.NO 30mm Cable,2m,3-wire
POV-M0802N2-DP330 M8 2mm 3000Hz Flush 齊平 NPN.NC 30mm Cable,2m,3-wire
POV-M0802P1-DP330 M8 2mm 3000Hz Flush 齊平 PNP.NO 30mm Cable,2m,3-wire
POV-M0802P2-DP330 M8 2mm 3000Hz Flush 齊平 PNP.NC 30mm Cable,2m,3-wire
POV-M0803N1-DP330 M8 3mm 1000Hz Flush 齊平 NPN.NO 30mm Cable,2m,3-wire
POV-M0803N2-DP330 M8 3mm 1000Hz Flush 齊平 NPN.NC 30mm Cable,2m,3-wire
POV-M0803P1-DP330 M8 3mm 1000Hz Flush 齊平 PNP.NO 30mm Cable,2m,3-wire
POV-M0803P2-DP330 M8 3mm 1000Hz Flush 齊平 PNP.NC 30mm Cable,2m,3-wire
PHV-M0804N1-DP330 M8 4mm 1000Hz Non-flush 非齊平 NPN.NO 30mm Cable,2m,3-wire
PHV-M0804N2-DP330 M8 4mm 1000Hz Non-flush 非齊平 NPN.NC 30mm Cable,2m,3-wire
PHV-M0804P1-DP330 M8 4mm 1000Hz Non-flush 非齊平 PNP.NO 30mm Cable,2m,3-wire
PHV-M0804P2-DP330 M8 4mm 1000Hz Non-flush 非齊平 PNP.NC 30mm Cable,2m,3-wire
PHV-M0806N1-DP330 M8 6mm 500Hz Non-flush 非齊平 NPN.NO 30mm Cable,2m,3-wire
PHV-M0806N2-DP330 M8 6mm 500Hz Non-flush 非齊平 NPN.NC 30mm Cable,2m,3-wire
PHV-M0806P1-DP330 M8 6mm 500Hz Non-flush 非齊平 PNP.NO 30mm Cable,2m,3-wire
PHV-M0806P2-DP330 M8 6mm 500Hz Non-flush 非齊平 PNP.NC 30mm Cable,2m,3-wire
POV-M0802N1-DS845 M8 2mm 3000Hz Flush 齊平 NPN.NO 45mm Connector M8,3-pole
POV-M0802N2-DS845 M8 2mm 3000Hz Flush 齊平 NPN.NC 45mm Connector M8,3-pole
POV-M0802P1-DS845 M8 2mm 3000Hz Flush 齊平 PNP.NO 45mm Connector M8,3-pole
POV-M0802P2-DS845 M8 2mm 3000Hz Flush 齊平 PNP.NC 45mm Connector M8,3-pole
POV-M0803N1-DS845 M8 3mm 3000Hz Flush 齊平 NPN.NO 45mm Connector M8,3-pole
POV-M0803N2-DS845 M8 3mm 1000Hz Flush 齊平 NPN.NC 45mm Connector M8,3-pole
POV-M0803P1-DS845 M8 3mm 1000Hz Flush 齊平 PNP.NO 45mm Connector M8,3-pole
POV-M0803P2-DS845 M8 3mm 1000Hz Flush 齊平 PNP.NC 45mm Connector M8,3-pole
PHV-M0804N1-DS845 M8 4mm 1000Hz Non-flush 非齊平 NPN.NO 45mm Connector M8,3-pole
PHV-M0804N2-DS845 M8 4mm 1000Hz Non-flush 非齊平 NPN.NC 45mm Connector M8,3-pole
PHV-M0804P1-DS845 M8 4mm 1000Hz Non-flush 非齊平 PNP.NO 45mm Connector M8,3-pole
PHV-M0804P2-DS845 M8 4mm 1000Hz Non-flush 非齊平 PNP.NC 45mm Connector M8,3-pole
PHV-M0806N1-DS845 M8 6mm 500Hz Non-flush 非齊平 NPN.NO 45mm Connector M8,3-pole
PHV-M0806N2-DS845 M8 6mm 500Hz Non-flush 非齊平 NPN.NC 45mm Connector M8,3-pole
PHV-M0806P1-DS845 M8 6mm 500Hz Non-flush 非齊平 PNP.NO 45mm Connector M8,3-pole
PHV-M0806P2-DS845 M8 6mm 500Hz Non-flush 非齊平 PNP.NC 45mm Connector M8,3-pole
POV-M0802N1-DP3 M8 2mm 3000Hz Flush 齊平 NPN.NO 45mm Cable,2m,3-wire

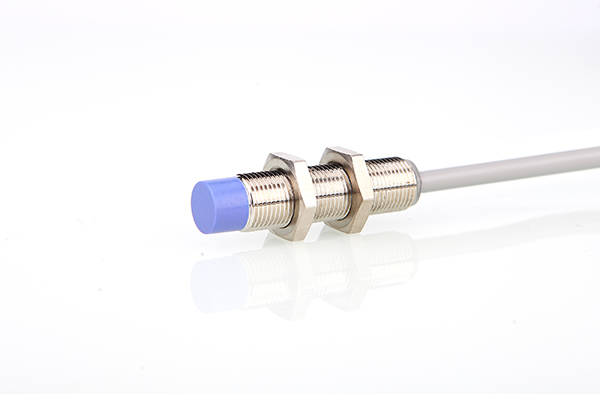

型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POC-M1202N1-DP3 M12 2mm 3000Hz Flush 齊平 NPN.NO 50mm Cable,2m,3-wire
POC-M1202N2-DP3 M12 2mm 3000Hz Flush 齊平 NPN.NC 50mm Cable,2m,3-wire
POC-M1202P1-DP3 M12 2mm 3000Hz Flush 齊平 PNP.NO 50mm Cable,2m,3-wire
POC-M1202P2-DP3 M12 2mm 3000Hz Flush 齊平 PNP.NC 50mm Cable,2m,3-wire
POC-M1204N1-DP3 M12 4mm 3000Hz Flush 齊平 NPN.NO 50mm Cable,2m,3-wire
POC-M1204N2-DP3 M12 4mm 3000Hz Flush 齊平 NPN.NC 50mm Cable,2m,3-wire
POC-M1204P1-DP3 M12 4mm 3000Hz Flush 齊平 PNP.NO 50mm Cable,2m,3-wire
POC-M1204P2-DP3 M12 4mm 3000Hz Flush 齊平 PNP.NC 50mm Cable,2m,3-wire
PHC-M1204N1-DP3 M12 4mm 3000Hz Non-flush 非齊平 NPN.NO 50mm Cable,2m,3-wire
PHC-M1204N2-DP3 M12 4mm 3000Hz Non-flush 非齊平 NPN.NC 50mm Cable,2m,3-wire
PHC-M1204P1-DP3 M12 4mm 3000Hz Non-flush 非齊平 PNP.NO 50mm Cable,2m,3-wire
PHC-M1204P2-DP3 M12 4mm 3000Hz Non-flush 非齊平 PNP.NC 50mm Cable,2m,3-wire
PHC-M1208N1-DP3 M12 8mm 500Hz Non-flush 非齊平 NPN.NO 50mm Cable,2m,3-wire
PHC-M1208N2-DP3 M12 8mm 500Hz Non-flush 非齊平 NPN.NC 50mm Cable,2m,3-wire
PHC-M1208P1-DP3 M12 8mm 500Hz Non-flush 非齊平 PNP.NO 50mm Cable,2m,3-wire
PHC-M1208P2-DP3 M12 8mm 500Hz Non-flush 非齊平 PNP.NC 50mm Cable,2m,3-wire
POC-M1204N1-DS1250 M12 4mm 3000Hz Flush 齊平 NPN.NO 50mm Connector M12,4-pole
POC-M1204N2-DS1250 M12 4mm 3000Hz Flush 齊平 NPN.NC 50mm Connector M12,4-pole
POC-M1204P1-DS1250 M12 4mm 3000Hz Flush 齊平 PNP.NO 50mm Connector M12,4-pole
POC-M1204P2-DS1250 M12 4mm 3000Hz Flush 齊平 PNP.NC 50mm Connector M12,4-pole
PHC-M1208N1-DS1250 M12 8mm 500Hz Non-flush 非齊平 NPN.NO 50mm Connector M12,4-pole
PHC-M1208N2-DS1250 M12 8mm 500Hz Non-flush 非齊平 NPN.NC 50mm Connector M12,4-pole
PHC-M1208P1-DS1250 M12 8mm 500Hz Non-flush 非齊平 PNP.NO 50mm Connector M12,4-pole
PHC-M1208P2-DS1250 M12 8mm 500Hz Non-flush 非齊平 PNP.NC 50mm Connector M12,4-pole

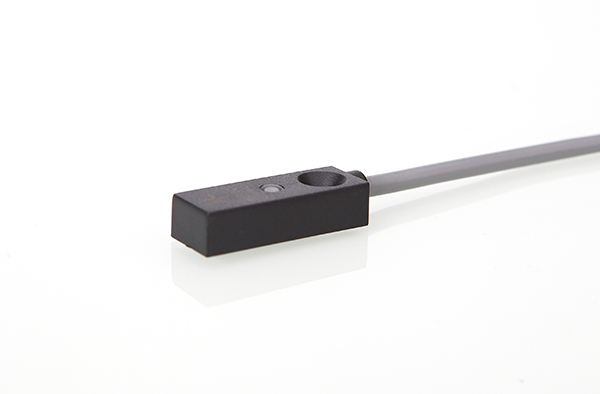

型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
PHP-S1004N1-DP3 S10 4mm 500Hz Non-flush 非齊平 NPN.NO 30mm Cable,2m,3-wire
PHP-S1004N2-DP3 S10 4mm 500Hz Non-flush 非齊平 NPN.NC 30mm Cable,2m,3-wire
PHP-S1004P1-DP3 S10 4mm 500Hz Non-flush 非齊平 PNP.NO 30mm Cable,2m,3-wire
PHP-S1004P2-DP3 S10 4mm 500Hz Non-flush 非齊平 PNP.NC 30mm Cable,2m,3-wire
PHP-S1104N1-DP3 S10 4mm 500Hz Non-flush 非齊平 NPN.NO 30mm Cable,2m,3-wire
PHP-S1104N2-DP3 S10 4mm 500Hz Non-flush 非齊平 NPN.NC 30mm Cable,2m,3-wire
PHP-S1104P1-DP3 S10 4mm 500Hz Non-flush 非齊平 PNP.NO 30mm Cable,2m,3-wire
PHP-S1104P2-DP3 S10 4mm 500Hz Non-flush 非齊平 PNP.NC 30mm Cable,2m,3-wire
型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
PHP-S1804N1-DP3 S18 4mm 500Hz Non-flush 非齊平 NPN.NO 35mm Cable,2m,3-wire
PHP-S1804N2-DP3 S18 4mm 500Hz Non-flush 非齊平 NPN.NC 35mm Cable,2m,3-wire
PHP-S1804P1-DP3 S18 4mm 500Hz Non-flush 非齊平 PNP.NO 35mm Cable,2m,3-wire
PHP-S1804P2-DP3 S18 4mm 500Hz Non-flush 非齊平 PNP.NC 35mm Cable,2m,3-wire

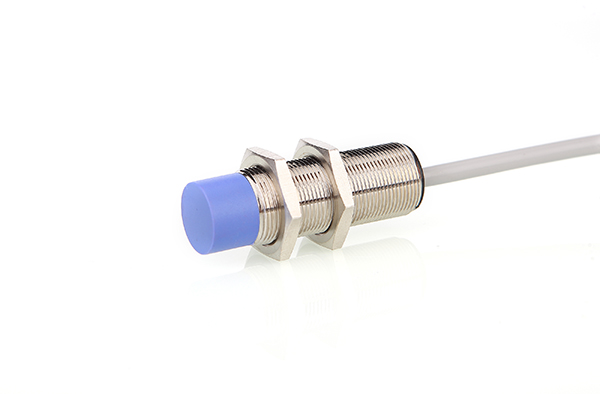

型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POC-M1808N1-DP3 M18 8mm 3000Hz Flush 齊平 NPN.NO 55mm Cable,2m,3-wire
POC-M1808N2-DP3 M18 8mm 3000Hz Flush 齊平 NPN.NC 55mm Cable,2m,3-wire
POC-M1808P1-DP3 M18 8mm 3000Hz Flush 齊平 PNP.NO 55mm Cable,2m,3-wire
POC-M1808P2-DP3 M18 8mm 3000Hz Flush 齊平 PNP.NC 55mm Cable,2m,3-wire
PHC-M1816N1-DP3 M18 16mm 500Hz Non-flush 非齊平 NPN.NO 55mm Cable,2m,3-wire
PHC-M1816N2-DP3 M18 16mm 500Hz Non-flush 非齊平 NPN.NC 55mm Cable,2m,3-wire
PHC-M1816P1-DP3 M18 16mm 500Hz Non-flush 非齊平 PNP.NO 55mm Cable,2m,3-wire
PHC-M1816P2-DP3 M18 16mm 500Hz Non-flush 非齊平 PNP.NC 55mm Cable,2m,3-wire
POC-M1808N1-DS1248 M18 8mm 3000Hz Flush 齊平 NPN.NO 48mm Connector M12,4-pole
POC-M1808N2-DS1248 M18 8mm 3000Hz Flush 齊平 NPN.NC 48mm Connector M12,4-pole
POC-M1808P1-DS1248 M18 8mm 3000Hz Flush 齊平 PNP.NO 48mm Connector M12,4-pole
POC-M1808P2-DS1248 M18 8mm 3000Hz Flush 齊平 PNP.NC 48mm Connector M12,4-pole
PHC-M1816N1-DS1252 M18 16mm 500Hz Non-flush 非齊平 NPN.NO 52mm Connector M12,4-pole
PHC-M1816N2-DS1252 M18 16mm 500Hz Non-flush 非齊平 NPN.NC 52mm Connector M12,4-pole
PHC-M1816P1-DS1252 M18 16mm 500Hz Non-flush 非齊平 PNP.NO 52mm Connector M12,3-pole
PHC-M1816P2-DS1252 M18 16mm 500Hz Non-flush 非齊平 PNP.NC 52mm Connector M12,3-pole
型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POC-M3010N1-DP3 M30 10mm 300Hz Flush 齊平 NPN.NO 55mm Cable,2m,3-wire
POC-M3010N2-DP3 M30 10mm 300Hz Flush 齊平 NPN.NC 55mm Cable,2m,3-wire
POC-M3010P1-DP3 M30 10mm 300Hz Flush 齊平 PNP.NO 55mm Cable,2m,3-wire
POC-M3010P2-DP3 M30 10mm 300Hz Flush 齊平 PNP.NC 55mm Cable,2m,3-wire
PHC-M3015N1-DP3 M30 15mm 300Hz Non-flush 非齊平 NPN.NO 55mm Cable,2m,3-wire
PHC-M3015N2-DP3 M30 15mm 300Hz Non-flush 非齊平 NPN.NC 55mm Cable,2m,3-wire
PHC-M3015P1-DP3 M30 15mm 300Hz Non-flush 非齊平 PNP.NO 55mm Cable,2m,3-wire
PHC-M3015P2-DP3 M30 15mm 300Hz Non-flush 非齊平 PNP.NC 55mm Cable,2m,3-wire
POC-M3010N1-DS1279 M30 10mm 300Hz Flush 齊平 NPN.NO 79mm Connector M12,4-pole
POC-M3010N2-DS1279 M30 10mm 300Hz Flush 齊平 NPN.NC 79mm Connector M12,4-pole
POC-M3010P1-DS1279 M30 10mm 300Hz Flush 齊平 PNP.NO 79mm Connector M12,4-pole
POC-M3010P2-DS1279 M30 10mm 300Hz Flush 齊平 PNP.NC 79mm Connector M12,4-pole
PHC-M3015N1-DS1279 M30 15mm 300Hz Non-flush 非齊平 NPN.NO 79mm Connector M12,4-pole
PHC-M3015N2-DS1279 M30 15mm 300Hz Non-flush 非齊平 NPN.NC 79mm Connector M12,4-pole
PHC-M3015P1-DS1279 M30 15mm 300Hz Non-flush 非齊平 PNP.NO 79mm Connector M12,4-pole
PHC-M3015P2-DS1279 M30 15mm 300Hz Non-flush 非齊平 PNP.NC 79mm Connector M12,4-pole
型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POV-M051.2N1-DP3 M5 1.2mm 2000Hz Flush 齊平 NPN.NO 25mm Cable,2m,3-wire
POV-M051.2N2-DP3 M5 1.2mm 2000Hz Flush 齊平 NPN.NC 25mm Cable,2m,3-wire
POV-M051.2P1-DP3 M5 1.2mm 2000Hz Flush 齊平 PNP.NO 25mm Cable,2m,3-wire
POV-M051.2P2-DP3 M5 1.2mm 2000Hz Flush 齊平 PNP.NC 25mm Cable,2m,3-wire

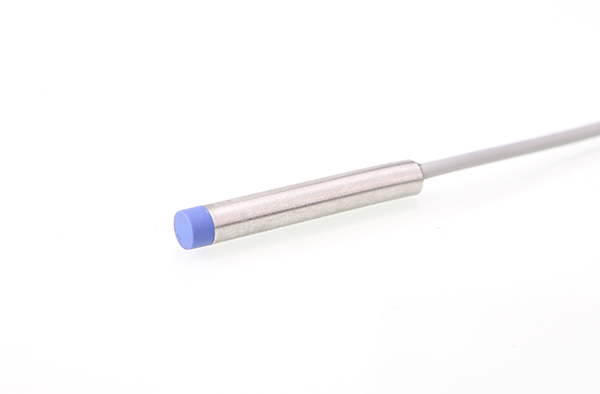

型號 照片 規格 感應距離 開關頻率 安裝方式 輸出信號 產品長度 連接方式
POV-H6.502N1-DP3 Φ6.5 2mm 3000Hz Flush 齊平 NPN.NO 45mm Cable,2m,3-wire
POV-H6.502N2-DP3 Φ6.5 2mm 3000Hz Flush 齊平 NPN.NC 45mm Cable,2m,3-wire
POV-H6.502P1-DP3 Φ6.5 2mm 3000Hz Flush 齊平 PNP.NO 45mm Cable,2m,3-wire
POV-H6.502P2-DP3 Φ6.5 2mm 3000Hz Flush 齊平 PNP.NC 45mm Cable,2m,3-wire
PHV-H6.504N1-DP3 Φ6.5 4mm 1000Hz Non-flush 非齊平 NPN.NO 45mm Cable,2m,3-wire
PHV-H6.504N2-DP3 Φ6.5 4mm 1000Hz Non-flush 非齊平 NPN.NC 45mm Cable,2m,3-wire
PHV-H6.504P1-DP3 Φ6.5 4mm 1000Hz Non-flush 非齊平 PNP.NO 45mm Cable,2m,3-wire
PHV-H6.504P2-DP3 Φ6.5 4mm 1000Hz Non-flush 非齊平 PNP.NC 45mm Cable,2m,3-wire
